Converter Gunning Machines

Converter Gunning Machines

Converter Gunning Machines

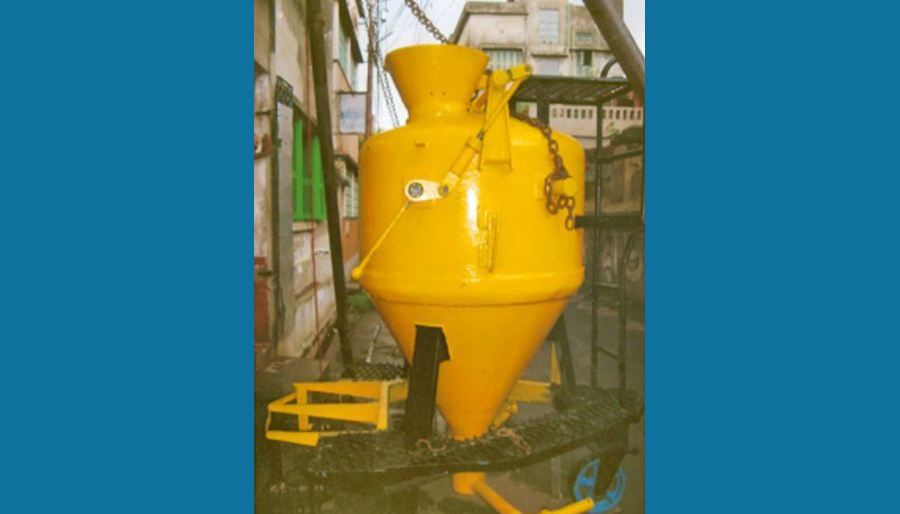

Owing to our reliable performance in this market, we have been able to carve a niche as foremost manufacturers & exporters of Converter Gunning Machine. In compliance with international quality standards, we are manufacturing these gunning machines using high grade materials. Our Converter Gunning Machine is widely used for repairing of electric arc furnace AOD, VOD in hot & cold conditions, injection of coke in molten metal bath and foamy slag applications.

Special Features:

  •     Vibrating hopper with sieve & stirring star
  •     Highly wear resistance material
  •     Automatic Lubrication of top & bottom liners
  •     Variable speed drive
  •     Standardized superposed rotors
  •     Polychain GT drives
  •     The rotor fixing & clamping arrangements are designed
  •     The machine is compact & mobile
  •     Proper electrical interlocks to ensure air & water supply
  •     Air filter is incorporated in the air conveying

Standard Accessories:

  •     Vibrating Hopper (optional)
  •     Liner lubrication system
  •     Spraying nozzle (as specified by customer)
  •     Conveying hoses, Couplings (suiting to requirements)
  •     Water pressure increasing pump (optional)
  •     Air filter
  •     Different rotors with kit (as specified by customer)
  •     Dust filter sack

Technical Details

Dimensions Length: 1185 mm
Width: 750 mm
Heigh : 1300 mm on an average
Drive Electric Motor: 5.5 KW, 415 V, 5o Hz, Class F, and IP 55
Conveying Capacity 0.3 - 4.0 m3/h
Rotor Capacity 1.6 Lt. 2.8 Lt. 3.6 Lt. 5.0 Lt.
M/C Capacity (m3/h) 0.3 – 1.2 0.6 – 2.1 1.0 – 3.0 1.2 - 4.0
Air Consumption 4.5 m3/min - 11.5 m3/min
Operating Air Pressure 2-6 bar
Max. Conveying Distance upto 200 m
Max. Conveying Height upto 75 m
Max. Grain Size Allowed 15 mm
